AWS Elastic Beanstalk docker application deployment and CI/CD Gitlab configuration

AWS Elastic Beanstalk docker application deployment and CI/CD Gitlab configuration


aws docker gitlab cicd

In this post I will show how to prepare and execute AWS elastic beanstalk deployment of docker application. I think these days docker deployment is the best way to package and deploy most of the web applications.

Recently I had deployed two totally different applications - one Python Django project and one Java Spring Boot application - both the same very easy and efficient way - by the Docker containers.

There is a couple of options when you deploy Docker containers to Amazon Elastic Beanstalk. For simple applications there is Single Container Docker which could be built from Dockerfile for us by Amazon. For complex and performance demanding applications exist Multicontainer Docker option. In this case we have to use prebuild Docker images from our public or private registry. In this tutorial I will describe both ways. There is also third option where we could use preconfigured images but I won’t describe this path.

So let’s assume that we have simple Django/Python application (I’ve created something on my Github account) and we would like to create simple flow that when we push the code to the master branch this code will be deployed to the our Elastic Beanstalk environment - just for test I do not distinguish dev, prod, etc. - it all could by done just by proper .gitlab-ci.yml file reconfiguration.

First of all we have to prepare the Dockerfile and put this file on the root of our project. AWS will use it to build our Docker image. I’ve prepared the simplest example of that kind of Dockerfile as possible (of course for production ready Django app we need to extend this file but this is not the intention of this post):

FROM python:3.6.3
MAINTAINER Przemek Nowak

COPY . /mysite
WORKDIR /mysite

RUN python -m pip install -r requirements.txt

EXPOSE 8000

CMD ["sh", "./runserver.sh"]

The content of the runserver.sh just starts the server:

python manage.py runserver 0.0.0.0:8000

For Single Container Docker deployment we don’t need Dockerrun.aws.json - alone Dockerfile is enough to deploy and run our application on AWS Elastic Beanstalk. In case of Multicontainer Docker we have to prepare the Docker image first (we could build image in our Gitlab server to available registry - I will show example later) and then declare JSON file on the project root directory:

{
    "AWSEBDockerrunVersion": "1",
    "Authentication": {
        "Bucket": "mysite-bucket-docker-auth",
        "Key": "dockercfg"
    },
    "Image": {
        "Name": "registry.gitlab.com/mycompany/mysite",
        "Update": "true"
    },
    "Ports": [
        {
            "ContainerPort": "8000"
        }
    ],
    "Logging": "/var/log/nginx"
}
  • Authentication - this part is required only for private Docker repositories, we have to specify the Amazon S3 object storing the .dockercfg file
  • Image - specifies the Docker base image on an existing Docker repository from which you’re building a Docker container
  • Ports - when we specify prepared earlier image we have to point the list of ports to expose on the Docker container. These port will be connected with the reverse proxy running on the host

In both cases when we prepared Dockerfile or Dockerrun.aws.json we have to create Elastic Beanstalk environments. We could automate this process if we need for example new environment for each feature branch or something like that but here I will show how we could environment manually by AWS EB CLI. The details how to install and configure it you will find on AWS documentation so I will skip this part.

In order to create new environment you have to execute eb create command available on AWS EB CLI. When you do that you have to fill some fields required to setup the new environment.

$ eb create
Enter Environment Name
(default is tmp-dev): ENTER
Enter DNS CNAME prefix
(default is tmp-dev): ENTER
Select a load balancer type
1) classic
2) application
3) network
(default is 1): ENTER
NOTE: The current directory does not contain any source code. Elastic Beanstalk is launching the sample application instead.
Do you want to download the sample application into the current directory?
(Y/n): ENTER
INFO: Downloading sample application to the current directory.
INFO: Download complete.
Environment details for: tmp-dev
  Application name: tmp
  Region: us-east-2
  Deployed Version: Sample Application
  Environment ID: e-um3yfrzq22
  Platform: 64bit Amazon Linux 2014.09 v1.0.9 running PHP 5.5
  Tier: WebServer-Standard-1.0
  CNAME: tmp-dev.elasticbeanstalk.com
  Updated: 2017-11-08 21:54:51.063000+00:00
Printing Status:
INFO: createEnvironment is starting.
 -- Events -- (safe to Ctrl+C) Use "eb abort" to cancel the command.

As can you see on example from AWS documentation you have to provide the following information:

  • Environment Name - the name of new created environment
  • DNS CNAME prefix - the DNS for our environment, it has to be unique
  • Load Balancer Type - you have to select load balancing type for you application, the detailed comparison is available on AWS Documentation, for testing purposes the classic LB is ok.
  • Application code - in our case with prepared Docker configuration and application code EB CLI should pack and deploy source code from current branch. Take into account that by default EB CLI takes only the code which is committed to the version control system.

After create operation the EB CLI will create the .elasticbeanstalk directory with the config.yml file within it. You could commit this config file to VCS but don’t keep any secrets and similar data there. Everything what should be secret cannot be on the VCS.

In the next step we will prepare the .gitlab-ci.yml file where we define the job to deploy latest code for our environment. Example file:

image: python:3.6.3

stages:
  - deploy

deploy-staging:
    stage: deploy
    script:
      - python3 -m pip install -r requirements.txt
      - eb use staging-environment -v
      - eb deploy staging-environment -v
    environment:
      name: staging
      url: http://my.staging.environment
    only:
      - develop

Of course the example file is very simple and has only one stage (deploy). Normally this file could have a lot of stages (test, quality, package, etc.) and deploy to many environments. The script is for Python application that’s why all dependencies are installed - the awsebcli package is defined on the requirements.txt file. You could also notice that this deployment is run only for develop branch. If you would like to read more about possibilites of GitLab CI you could take a look here. From our perspective the most important commands are eb use <env name> and eb deploy <env name> which are responsible for new version deployment.

In case when you deploy not-python application the script will be very similar (the best option is to use image python to run deployment):

deploy-staging:
    image: python:3.6.3
    stage: deploy
    script:
        - python3 -m pip install awsebcli
        - eb use staging-environment -v
        - eb deploy staging-environment -v
    environment:
      name: staging
      url: http://my.staging.environment
    only:
      - develop

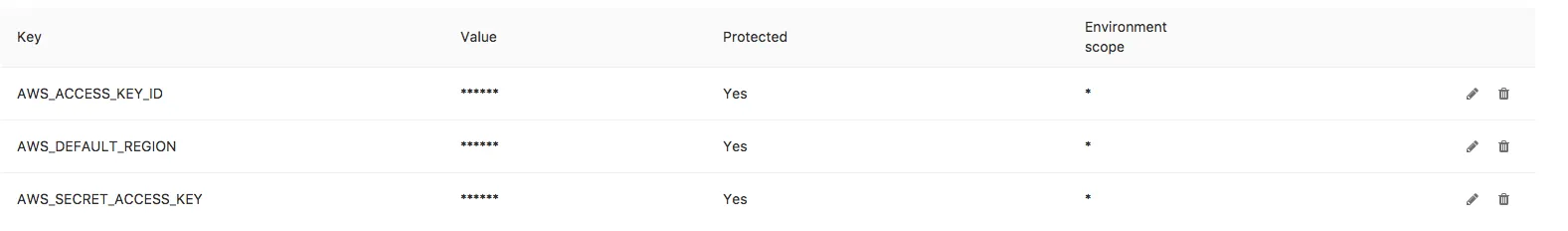

The next important key to make it work are credentials. The above runners are from GitLab runners pool so we have to provide somehow AWS secrets. In order to do that we have to define Secret variables on GitLab -> Settings -> CI/CD.

secrets

As I mentioned before for Multicontainer Docker deployment we have to first prepare docker image in our repo. To do that we could use also Gitlab CI and example script:

dockerize:
    image: docker:latest
    stage: build
    variables:
        DOCKER_DRIVER: overlay2
    services:
        - docker:dind
    before_script:
        - docker info
    script:
        - docker login -u gitlab-ci-token -p $CI_JOB_TOKEN registry.gitlab.com
        - IMAGE_NAME="registry.gitlab.com/mygitlabprofile/mygitlabproject"
        - TAG_XYZ="$(date '+%Y-%m-%d_%H-%M-%S')"
        - TAG_LATEST="latest"
        - VERSION_XYZ="$IMAGE_NAME:$TAG_XYZ"
        - VERSION_LATEST="$IMAGE_NAME:$TAG_LATEST"
        - docker image build -f ./docker/Dockerfile -t $VERSION_LATEST -t $VERSION_XYZ .
        - docker push $IMAGE_NAME

Of course you could modify above script in case you expect another tag versioning approach or would like to build images only in specific cases (like tag, etc.).

In this moment we have configured build process and deployment process but often application requires some environment-specific configuration (database configuration, etc.). As I mentioned before keep that kind of data on VCS is not a good idea. We could configure environment variables on the AWS Elastic Beanstalk console. We will find it on AWS Services -> Elastic Beanstalk -> Project -> Environment -> Configuration -> Software Configuration -> Environment Properties. We could set there all required by our application config properties.

Of course there is more options. We could always change there Scaling, Instances, etc. For single instances it’s easy and convenient way but if we have more environments to mange it would be better to use console.

Ok - so in this moment our application should automatically build and deploy to EB environment(s). The good idea it would be to connect with the environment the custom domain instead of default AWS domain name. This operation is very easy even if you don’t have domain on the AWS but on the external domain provider (for domains registered directly on AWS it’s event easier - you will find everything on documentation).

To connect with custom domain you have to:

  1. Login to you domain provider.
  2. Go to DNS settings.
  3. Create CNAME record. Unfortunately the main domain (without subdomain) does not work so if you are planning to use your main domain the best option here is define CNAME record with www on the subdomain field (sometimes this field could have name host or something like that) and your AWS DNS domain as a target.
  4. If you using your main domain (www as required subdomain) you could also add redirect from you main domain (ie. mydomain.com) to created CNAME subdomain (ie. www.mydomain.com). Otherwise this action is not required.
  5. That’s all - wait for DNS record refresh.

The Elastic Beanstalk setup for use the EC 2 instances. It could happen that sometimes we will need to go to that EC 2 instances and change something. Because Docker environments should be stateless (and in multiple instances AWS could setup and terminate instances for us) EB provide the ebextensions.

This feature allows to create command which will be executed on the instances. To do that we have to create .ebextensions directory and put there config files. For example in order to add EC 2 instances user to docker users group and truncate docker logs we have to prepare docker.config with the following content:

commands:
  add_ec2_user_to_docker_group:
    command: "sudo usermod -aG docker ec2-user"
    ignoreErrors: true
  add_docker_log_truncate_cronjob:
    command: "crontab -l | grep -q 'eb-docker' || (crontab -l ; echo '* */6 * * * /bin/echo 0 | tee /var/log/eb-docker/containers/*/*.log')| crontab -"
    ignoreErrors: true
